Prefabricated Assembly Fabricated Gym Gymnasium Light Steel Frame Construction Volleyball Sport Hall

Short Description:

Innovation to the power of growth

The advent of smart technologies has revolutionized the way manufacturing industry operates in the new age. New age manufacturing technologies gave genesis to Pre Engineered Buildings (PEBs) in other words Prefab Buildings thereby achieving cost effective turnkey solutions within a set time frame tailored to industry specific requirement and so, changed the perspective of the construction and infrastructure industry. HJSD was quick to adapt to the global industrial demand for steel construction solutions and has since, made rapid inroads into Pre Engineered Building Systems and Structural Steel sector.

  • Standard: AiSi, ASTM, bs, DIN, GB, JIS
  • Place of Origin: Hebei, China
  • Model Number:: Steel structure workshop
  • Application: Steel structure warehouse workshop building
  • Product name: design two story prefabricated steel structure workshop building
  • Keyword: steel structure building warehouse
  • Application Fields: Warehouse workshop shed hanger farm industrial/commercial building
  • Door: Rolling Door/Sliding Door
  • Application Fields: Warehouse workshop shed hanger farm industrial
  • windows: Pvc
  • Product Detail

    Product Tags

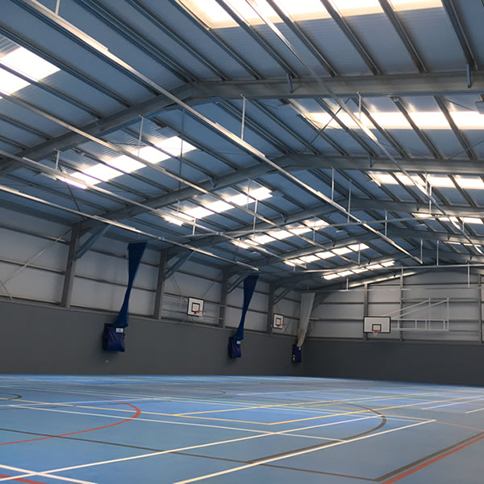

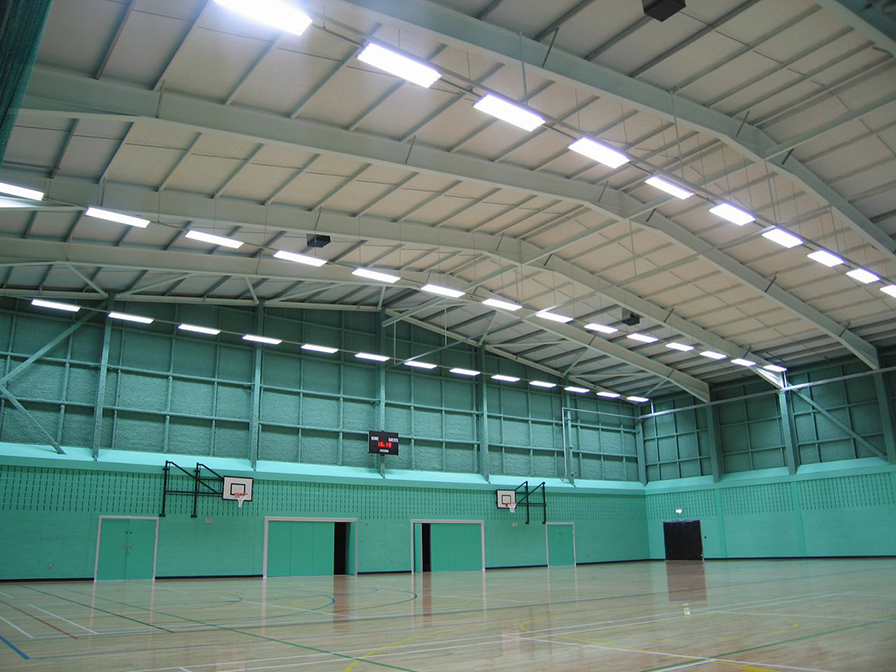

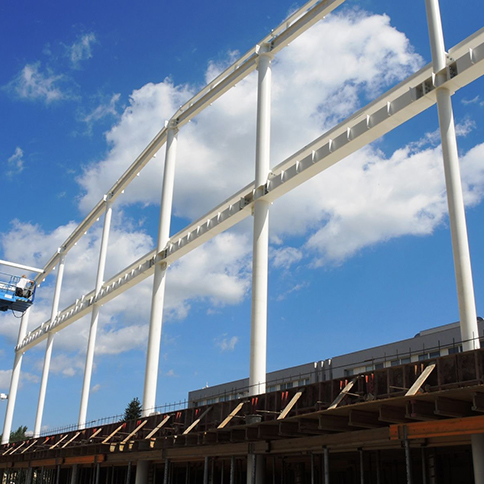

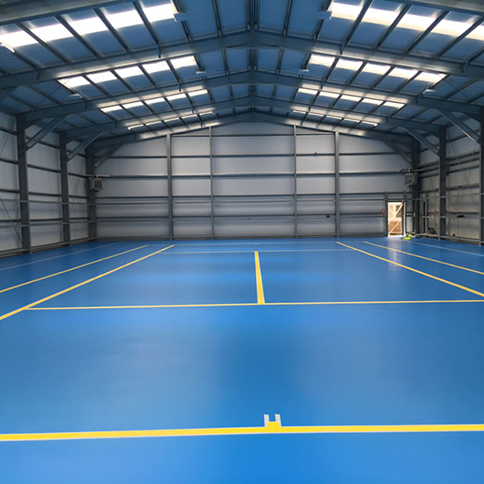

    Prefabricated Assembly Fabricated Gym Gymnasium Light Steel Frame Construction Volleyball Sport Hall (1) Prefabricated Assembly Fabricated Gym Gymnasium Light Steel Frame Construction Volleyball Sport Hall (2) Prefabricated Assembly Fabricated Gym Gymnasium Light Steel Frame Construction Volleyball Sport Hall (3) Prefabricated Assembly Fabricated Gym Gymnasium Light Steel Frame Construction Volleyball Sport Hall (4)

    What makes HJSD Pre Engineered Buildings (PEB) a cut above the rest is our highly skilled and experienced team of technologists who relentlessly endeavor to translate smart engineering to smart buildings. Pre Engineered Buildings that can be customized and tailor-made to meet your specific needs. Having carved a niche as an innovator in offering complete turnkey steel construction solutions, HJSD is revolutionizing the PEB and Pre Engineered Steel Structures ecosystem.


    An adept team at HJSD, ensures that the manufacturing ecosystem comprises an admixture of engineering technology and design aesthetics; to ensure feasible Prefab Building solutions that encompass designing, detailing, manufacturing, on-site erection and maintenance to after sales service, all under one roof.


    It is this ability in transforming engineering theory into a sustainable model of engineering excellence that has earned HJSD the sobriquet of “PEB” in the industry.


    The unwavering focus on application of smart technologies, has enabled HJSD to decode the matrix of complex challenges and provide durable, cost-effective and technologically superior Pre Engineered Building solutions. HJSD team also takes pride in the use of the top-of-the-line manufacturing equipment at a fully integrated, state-of-the-art production facility with a capacity of 6000 MT per annum.




    Buildings are typically delivered in just a few weeks after approval of drawings. Parallel processing ensures that site preparation, manufacturing, delivery and construction are packaged in a manner to crunch the project timeline. Studies have shown that the use of PEB reduces total construction time substantially. This leads to a faster realization of assets and revenue.



    Due to a systems approach, there is a significant saving in design, manufacturing and on site erection cost. HJSD delivers a bespoke solution, unique and optimized for a specific requirement, location and industry.



    Steel structure sports hall can be easily expanded in length by adding additional bays. Also expansion in width and height is possible by designing at the onset.



    Steel structure sports hall can be supplied with 80 meters plus clear span.



    As Steel structure sports hall are manufactured completely in the factory under controlled conditions the quality is assured.


    Stringent quality control ensures project delivery is on time and the product processes are accurate.


    The QC team at HJSD is highly qualified with certifications in the field of welding, painting and NDT (Non Destructive Testing).


    HJSD, with its full-fledged testing facility fulfills all the necessary quality norms and standards by precisely examining the raw materials as well as finished products.



    Steel structure sports hall are supplied with high quality paint systems for cladding and steel to suit ambient conditions at the site, which results in long durability and low maintenance costs.



    Steel structure sports hall can be supplied with polyurethane insulated panels or fiberglass blankets insulation.



    Steel structure sports hall can be supplied with various types of fascias, canopies, curved eaves and are designed to receive precast concrete wall panels, curtain walls, block walls and other wall systems.



    As the complete Steel structure sports hall package is supplied by a single vendor, compatibility of all the building components and accessories is assured. This is one of the major benefits of HJSD PEB.



    Steel structure sports hall buildings are mainly considered as the Main Frames of PEB. HJSD PEB rigid frame comprises of tapered columns and tapered rafters (the fabricated tapered sections are referred to as built-up members). The tapered sections are fabricated using the state of art technology wherein the flanges are welded to the web. Splice plates are welded to the ends of the tapered sections. The frame is erected by bolting the splice plates of connecting sections together.


    The most important parts of the steel structure sports hall are Columns and Rafters, which are otherwise called as Primary Structure. The major load of the building is being borne by these members. Assembled Columns and Rafters make the frame of the buildings on which all other parts of the buildings are fixed. The design of these structures is done using advance software such as STAAD PRO, Tekla, etc. The usual load considerations are Live Load, Dead Load, Wind load, Collateral Load, etc. Once the designs are completed, detailed engineering and shop drawings will be prepared. These data will be transferred to the shop floor and the products are made.

    Secondary members are load-carrying members suitable to ensure the stability of the building against forces from all directions. These include:


    Purlins, Girts and Eave Struts

    Purlins, Girts and Eave Struts are secondary structural members used to support the wall and roof panels. Purlins are used on the roof; Girts are used on the walls and Eave Struts are used at the intersection of the sidewall and the roof.


    Secondary members have two functions : they act as struts that help in resisting part of the longitudinal loads that are applied on the building such as wind and earthquake loads and they provide lateral bracing to the compression flanges of the main frame members thereby increasing frame capacity.


    Z- Purlin & C- Purlin

    Purlins and Girts are structural members made up of cold formed steel Z & C sections that are supported on columns, rafters or building walls. They can be lapped and nested at the supports, to create a continuous beam configuration. They are placed under the roof, wall and the perimeter of the building and serve as supports to the roof sheeting and wall cladding.


    The HJSD Edge

    Offers large column spacing.

    Are corrosion resistant due to rigorous surface preparation and

    superior on-line painting.

    Are practically maintenance free as they are galvanized.


    Panels used for sheeting purpose are generally of ribbed steel sheets used as roof and wall sheeting, roof and wall liners, partition and soft sheeting.


    The sheets are generally produced from steel coils having thickness 0.47 mm to 0.8 mm high tensile steel.


    In present day scenario, newly developed type “S” panel, whose profile is designed to withstand heavy loads, such as roof snow loads and uplift loads resulting from high velocity (cyclonic) winds is widely prevalent.

    Panels are available in 4 nominal thicknesses : 0.475 mm, 0.50 mm, 0.55 mm, 0.76 mm and in all standard colors.


    Mezzanine Systems

    Standard mezzanine system consists of profiled steel deck, mezzanine joists, built-up beams and intermediate support columns. Built-up beams span in lateral directions and mezzanine joists in longitudinal directions bolted to the top flange of beams. A concrete slab is cast on the steel deck as a finished surface. Steel checkered plates can also be used as top surface.

    In addition to the main building components, depending on user-requirement, HJSD also provides a wide range of building accessories:
